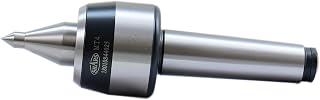

Shars 4MT Long Nose CNC Live Center 202-3530 M[ | Extended Nose Point, Medium Duty, Triple Bearing, High Speed

About this item

• SKU# 202-3530
• Shank Size: Morse taper 4
• Max RPM: 3500; Load Capacity Lbs: 1102
• Point Angle: 60°; TIR (inch): 0.00019
• Point Diameter: 1.18"
• Point Length: 2.01"
• Head Diameter: 2.52"
• OAL: 8.52"
• Extra long Spindle point extends into needle bearing supported shank to effectively improve rotating performance and reduce vibration
• Hardened body and taper shank for extra strength, rigidity and long life
• The anti-dust seal can prevent cutting fluid and dust from entering into the center bearing
• The live center has a combination of double row angular contact ball bearing from IJK bearing from Japan, P5 Class thrust ball bearing, and needle roller bearing
