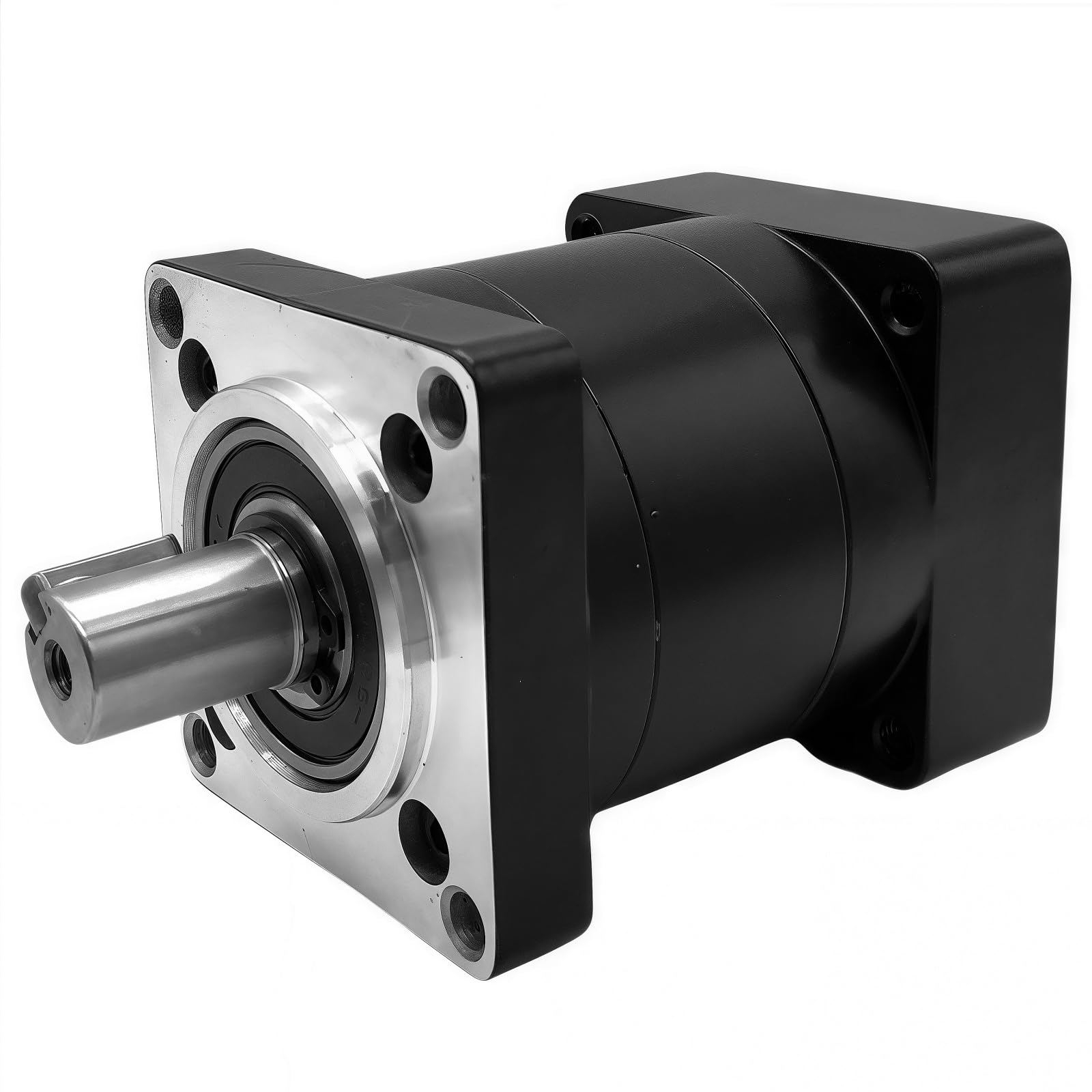

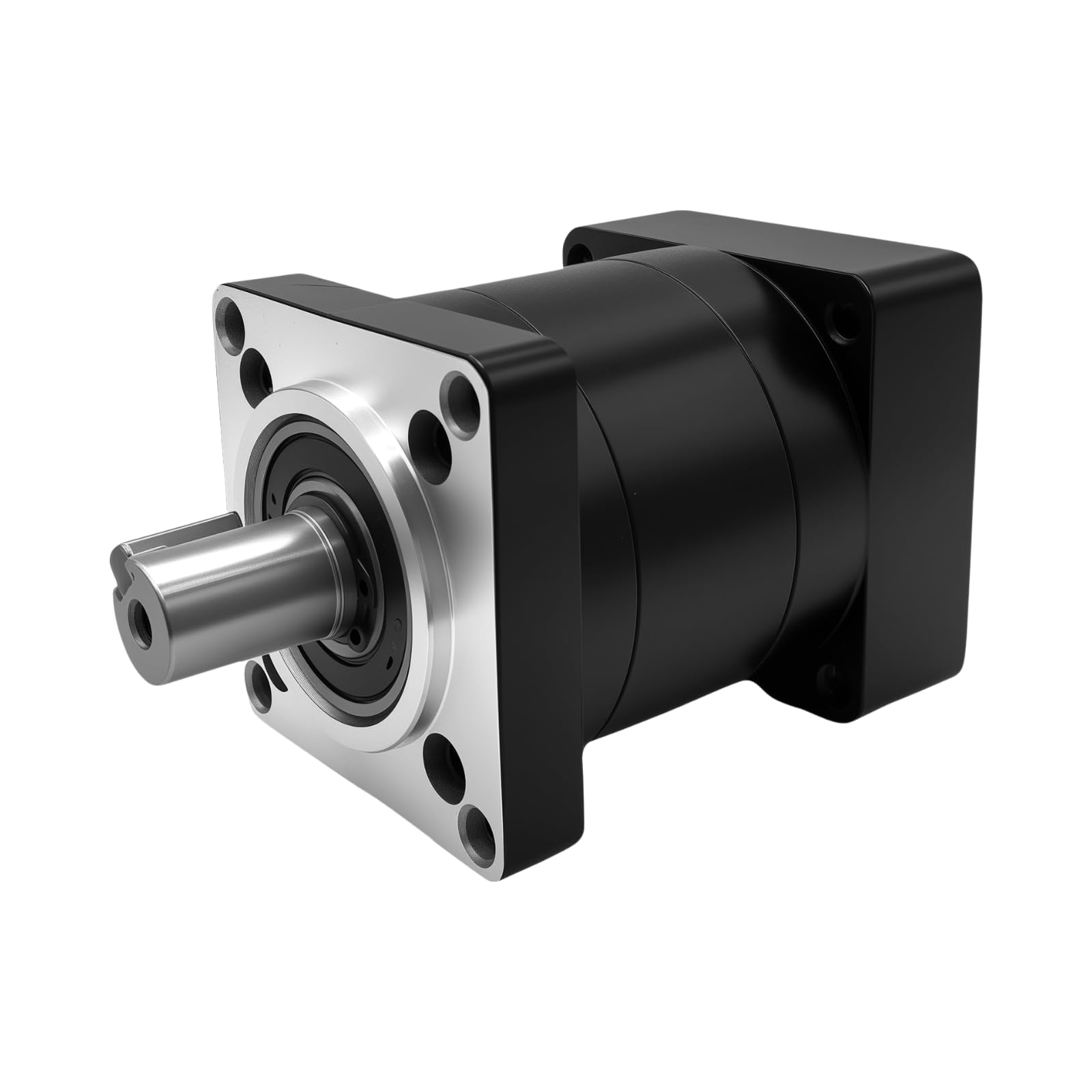

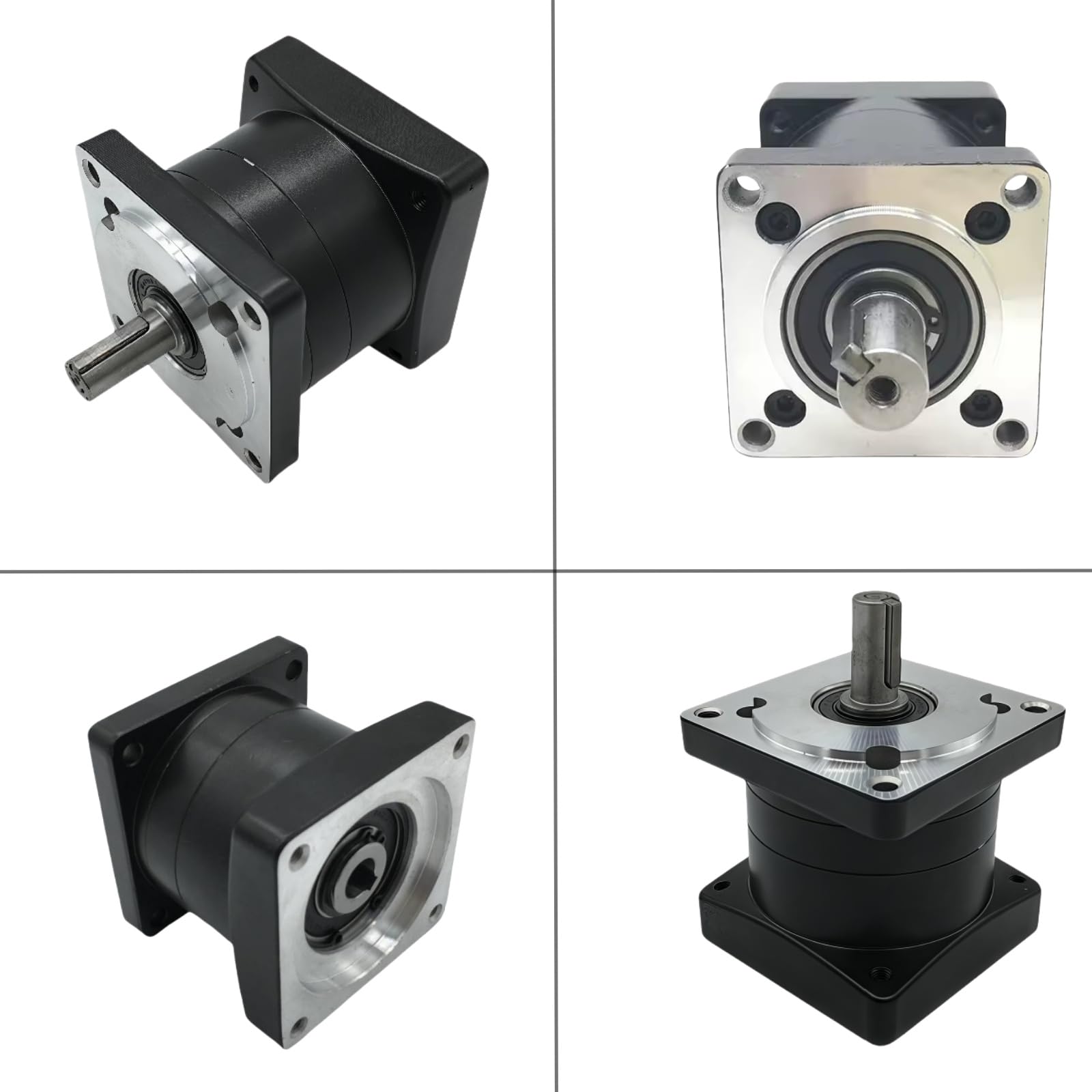

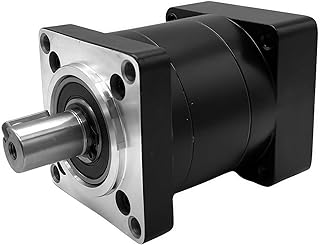

Ratio 3:1 Planetary Gearbox Nema34 Reducer Gear Head Gearbox Backlash < 20 arc-min for 14mm Input Shaft 16mm Output Shaft

About this item

• Reducer Specifications: Planetary Gearbox Ratio 3:1. Rated load (N.M): 30Nm, Maximum load (N.M): 50Nm.

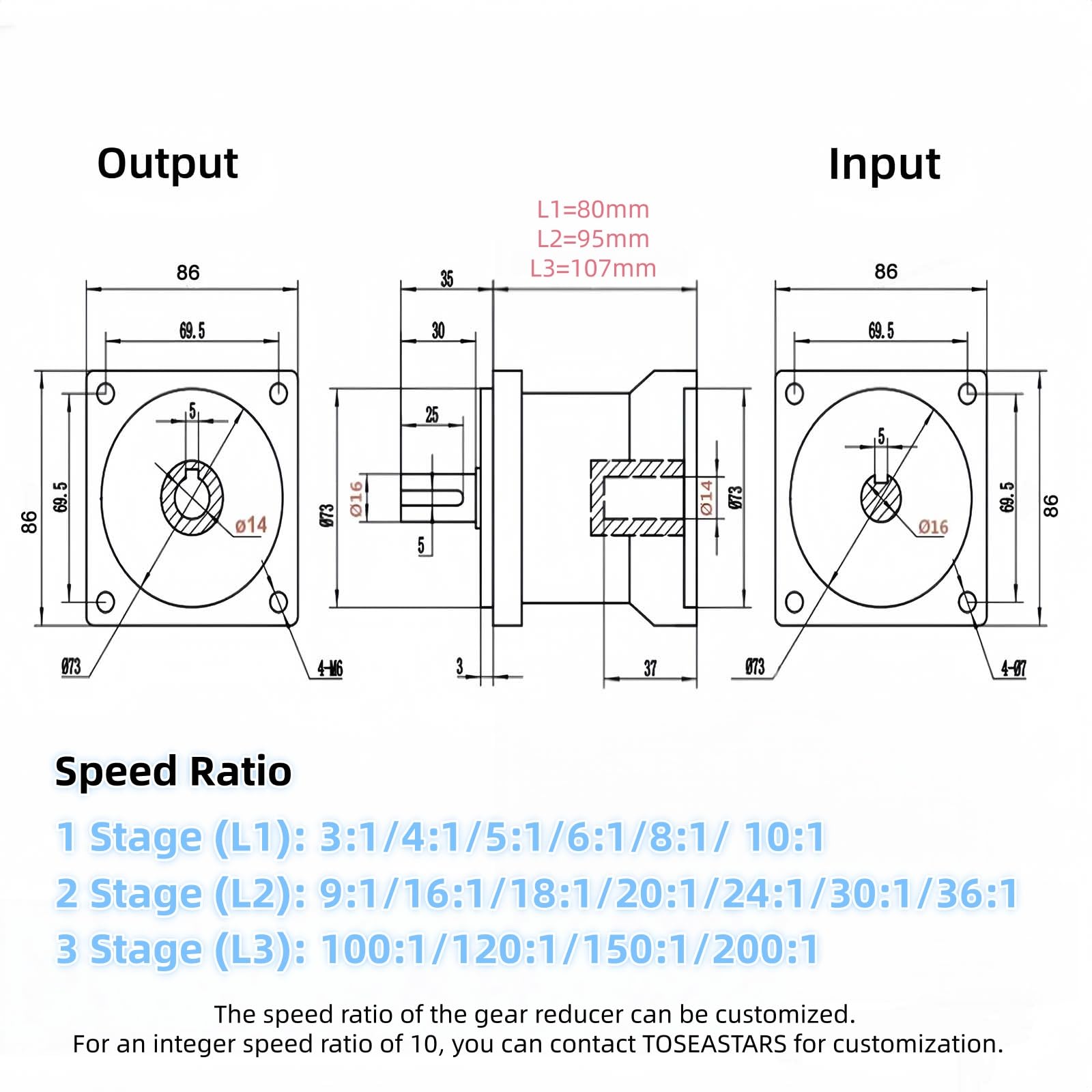

• Nema34 Planetary gearbox for Stepper Motor. Reduction box frame size: 86x86 mm(3.38 inch). Gear reduction box output shaft: 16mm(0.63 inch); gear reducer input shaft: 14mm( 0.55 inch).
• Planetary gear is a good solution in applications that need low rotation speeds and/or lots of huge torque.
• Applications: Compact design, flexible and easy installation, space-saving. This planetary gearbox is mainly used to reduce speed and increase holding torque, widely applied in CNC machine, such as engraving machine, milling machine, lathe, work bench, grinding machine etc.
• Included:1pc x Planetary Gearbo, 4pc x Screws. Advantages: Special grease, non-solidifying, long-lasting lubrication; High-precision gears, low noise, professional engineers design, no tooth chipping.
