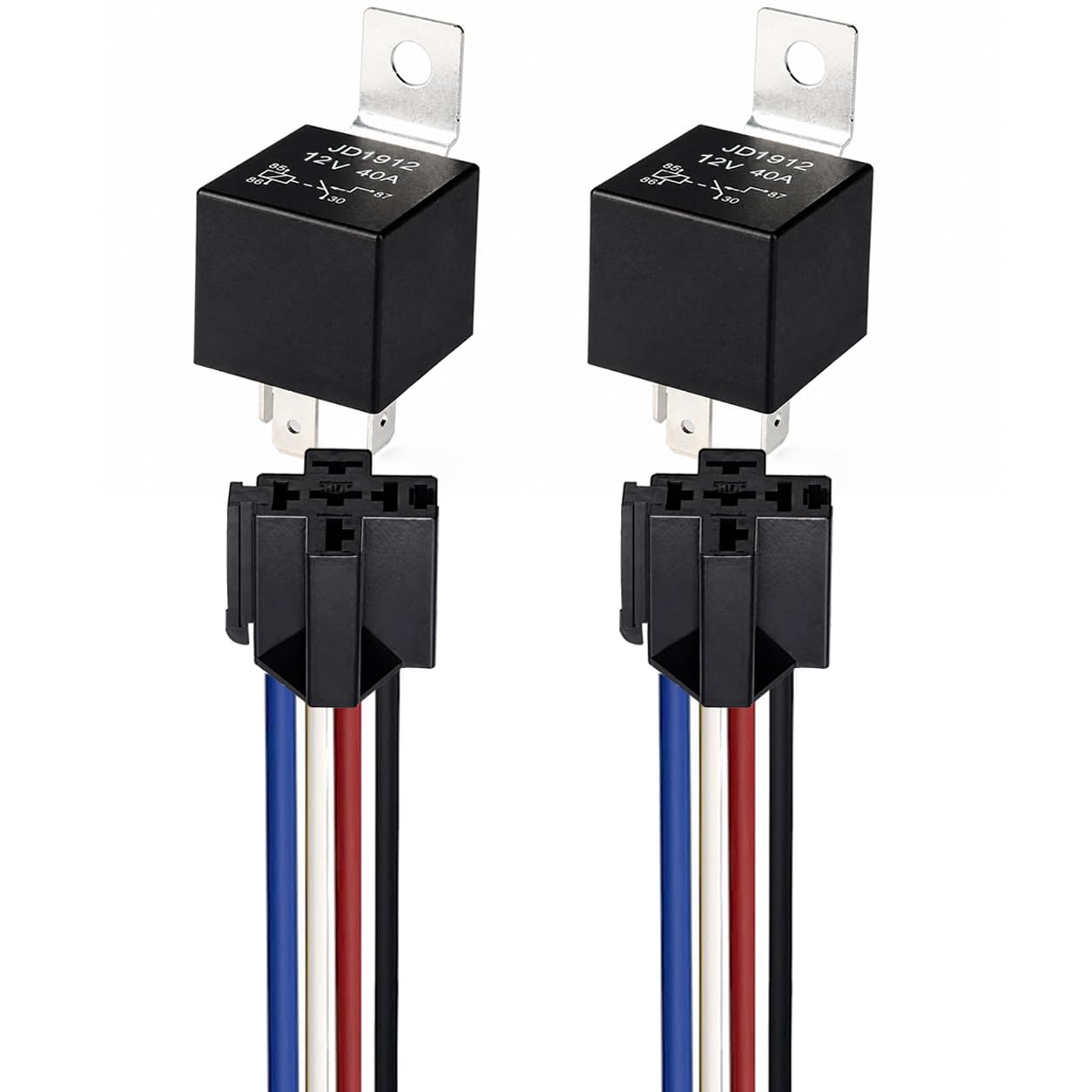

Gebildet 2pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Built-in Diode for Automotive Truck Van Motorcycle Boat

About this item

• Go to your orders and start the return
• Select the return method
• Go to your orders and start the return
• Select the return method

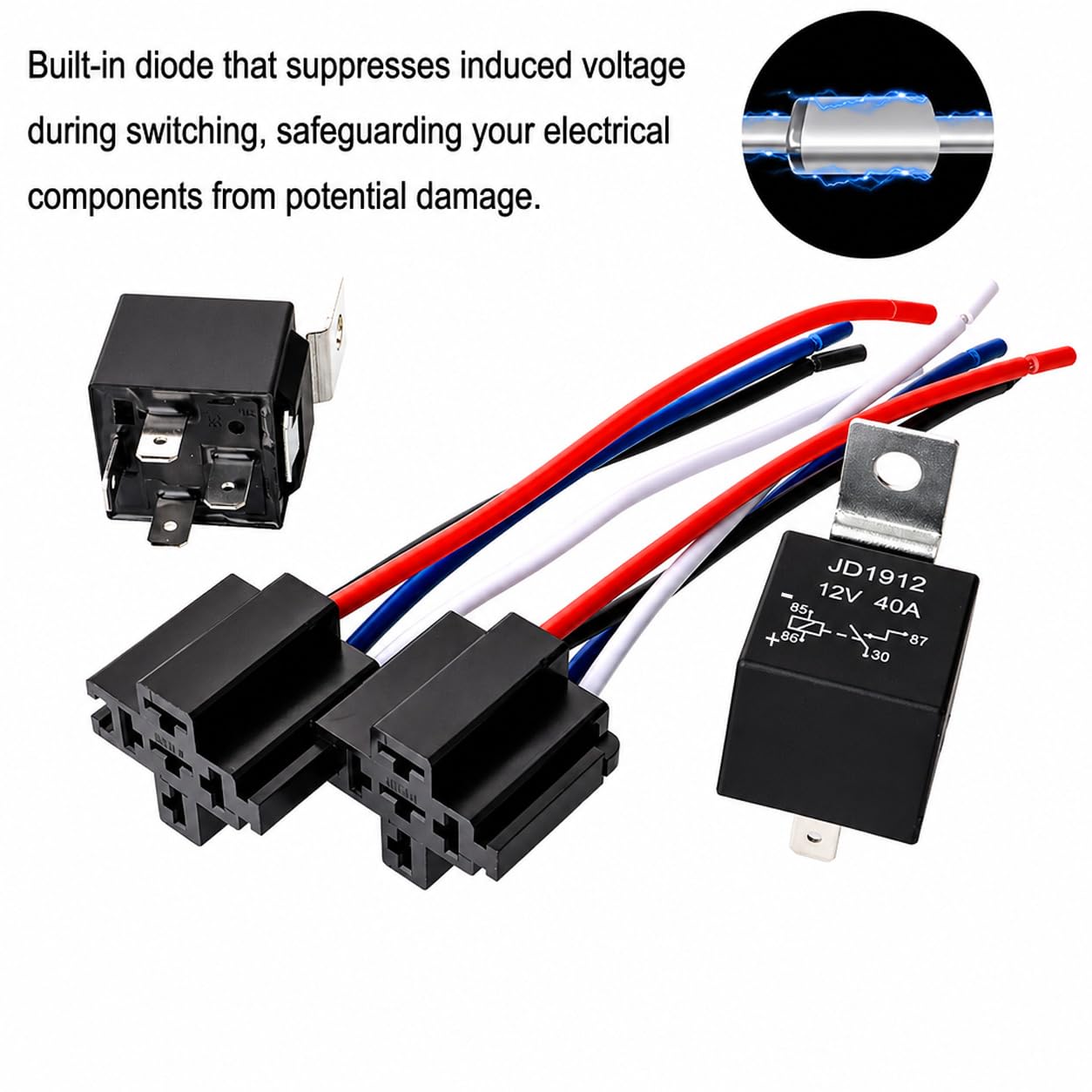

• Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.
• Rated operational voltage: 12V/ Switching Capability: 40A
• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
• Small size/Low power consumption/High contact voltage/ High sensitivity
• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.
• Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.
• Rated operational voltage: 12V/ Switching Capability: 40A
• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
