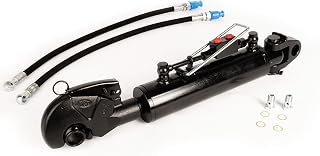

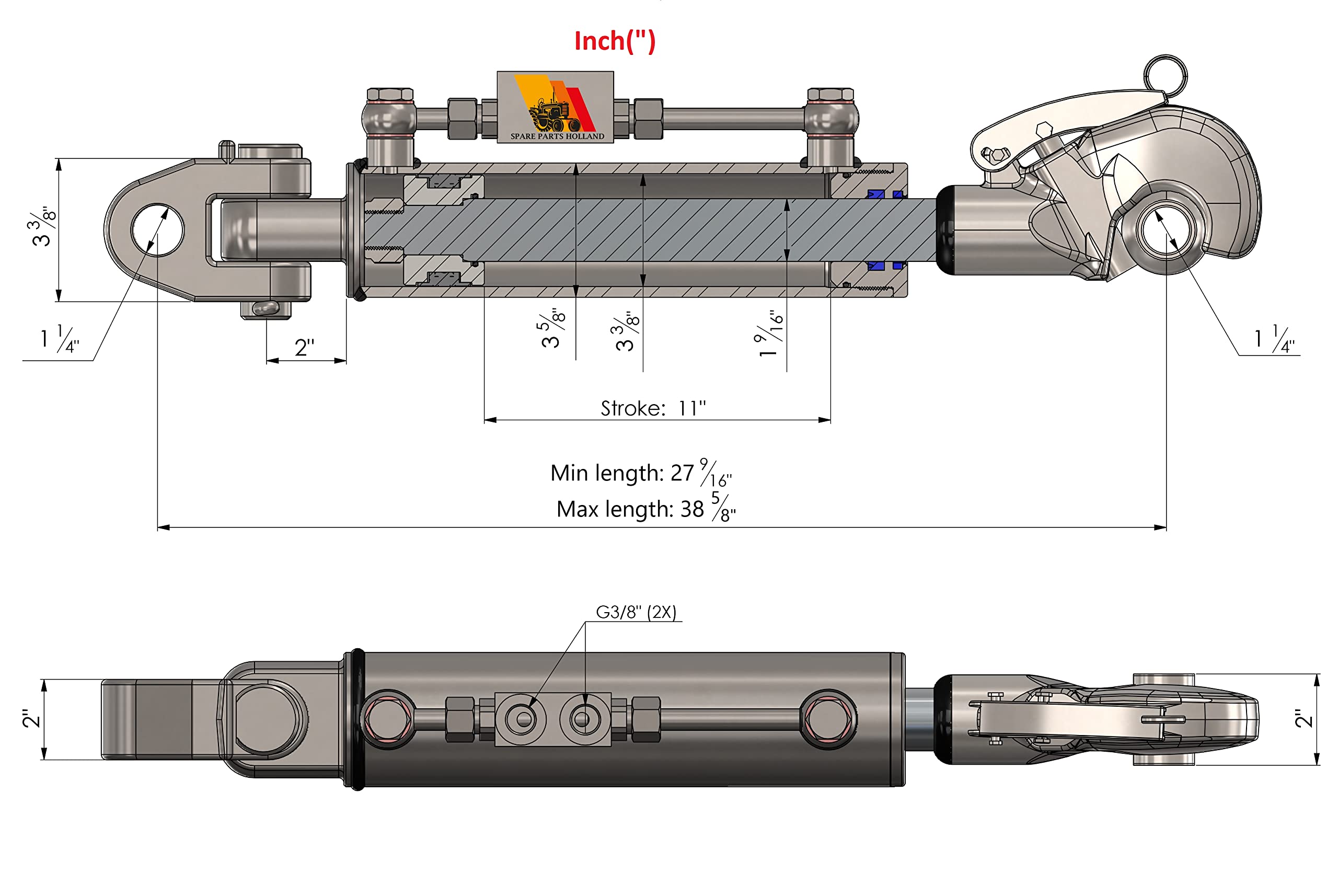

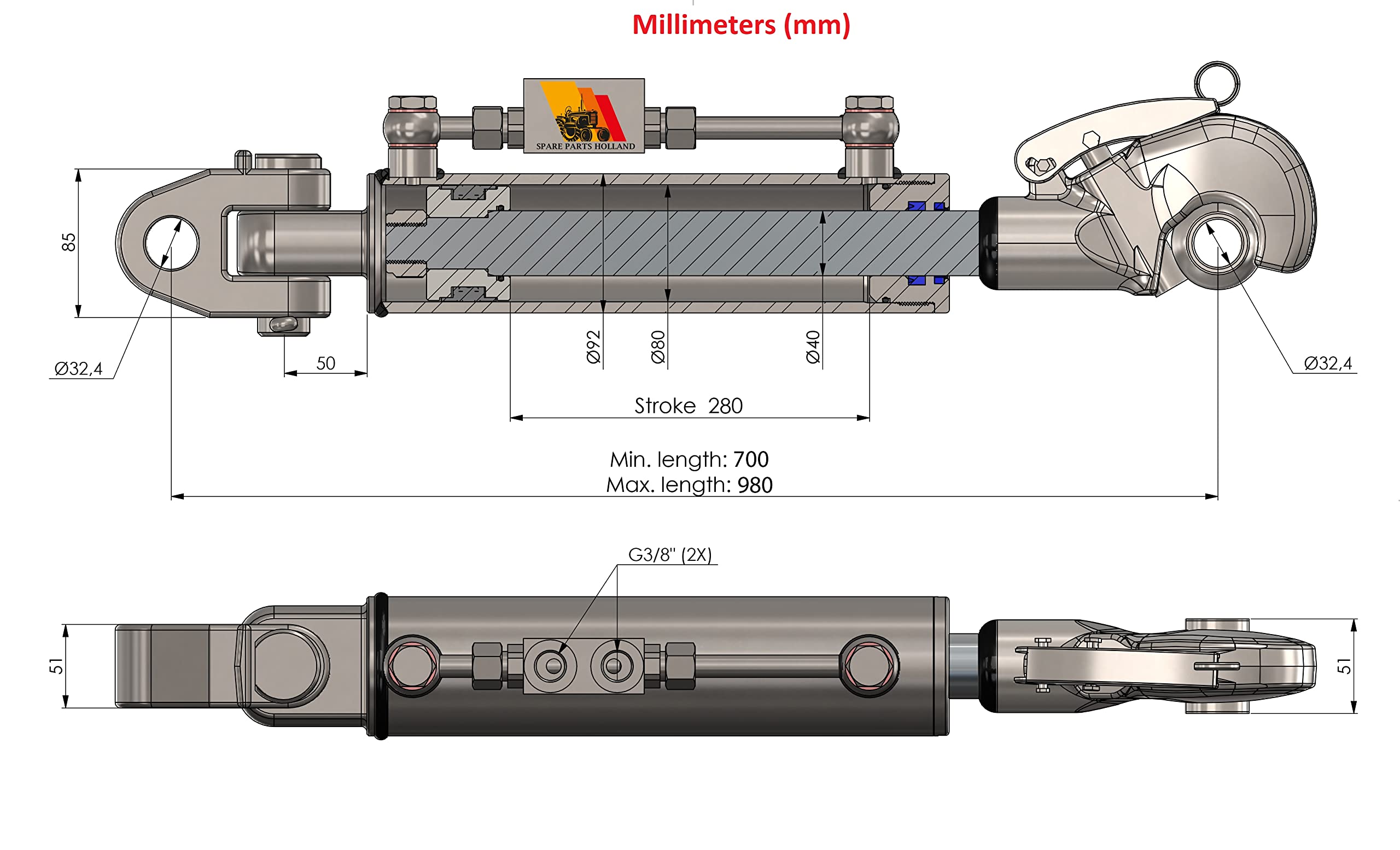

Spare Parts Holland – Hydraulic Top Link Cat. 3 with Quick-Release Hook, Clevis End, Locking Block and 2 Hoses – Adjustable 635–980 mm (25"–38 5/8") (700–980 mm (27 9/16"–38 5/8") – Stroke 280 mm)

About this item

• Hydraulic Top Link Cat. 3 – Heavy-duty hydraulic top link with Cat. 3 quick-release hook, Cat. 3 clevis end and Ø32.4 mm / 1 1/4" pin holes for tractor implement adjustment.
• Integrated Locking Block – Built-in locking block / check valve helps keep the implement securely in position and reduces unwanted movement or hydraulic drift under load.

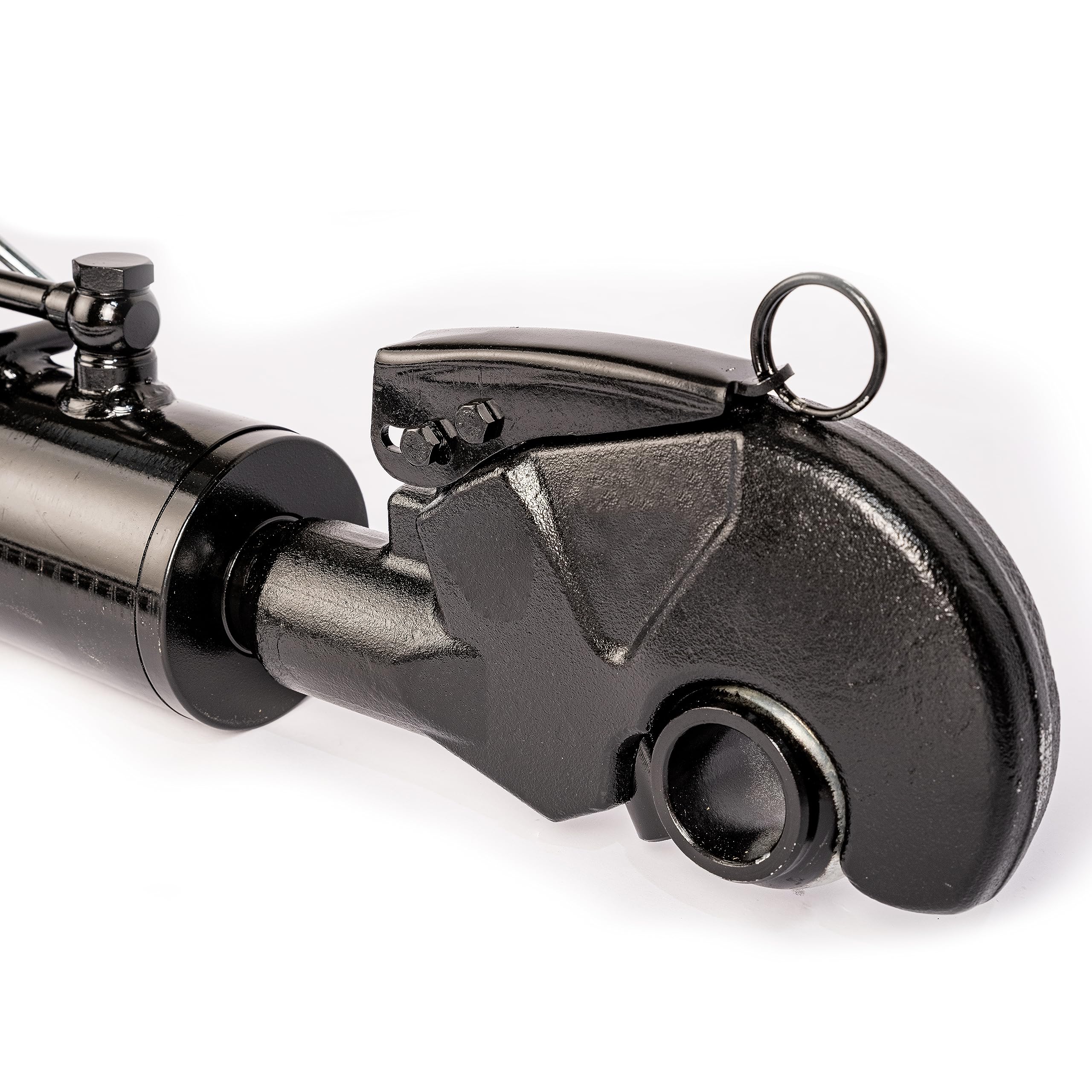

• Quick-Release Hook & Clevis End – Practical Cat. 3 quick-release hook on one side and strong clevis end on the other side for secure 3-point linkage use.
• Strong 80/40 mm Cylinder – Equipped with a heavy-duty hydraulic cylinder delivering approx. 9.2 tonnes push force and 6.9 tonnes pull force, with Ø80 mm bore and Ø40 mm rod.
• Ready to Install – Supplied fully assembled with 2 hydraulic hoses (700 mm / 27.6"), including 1/2" quick couplings and dust caps for quick connection to the tractor hydraulic system.

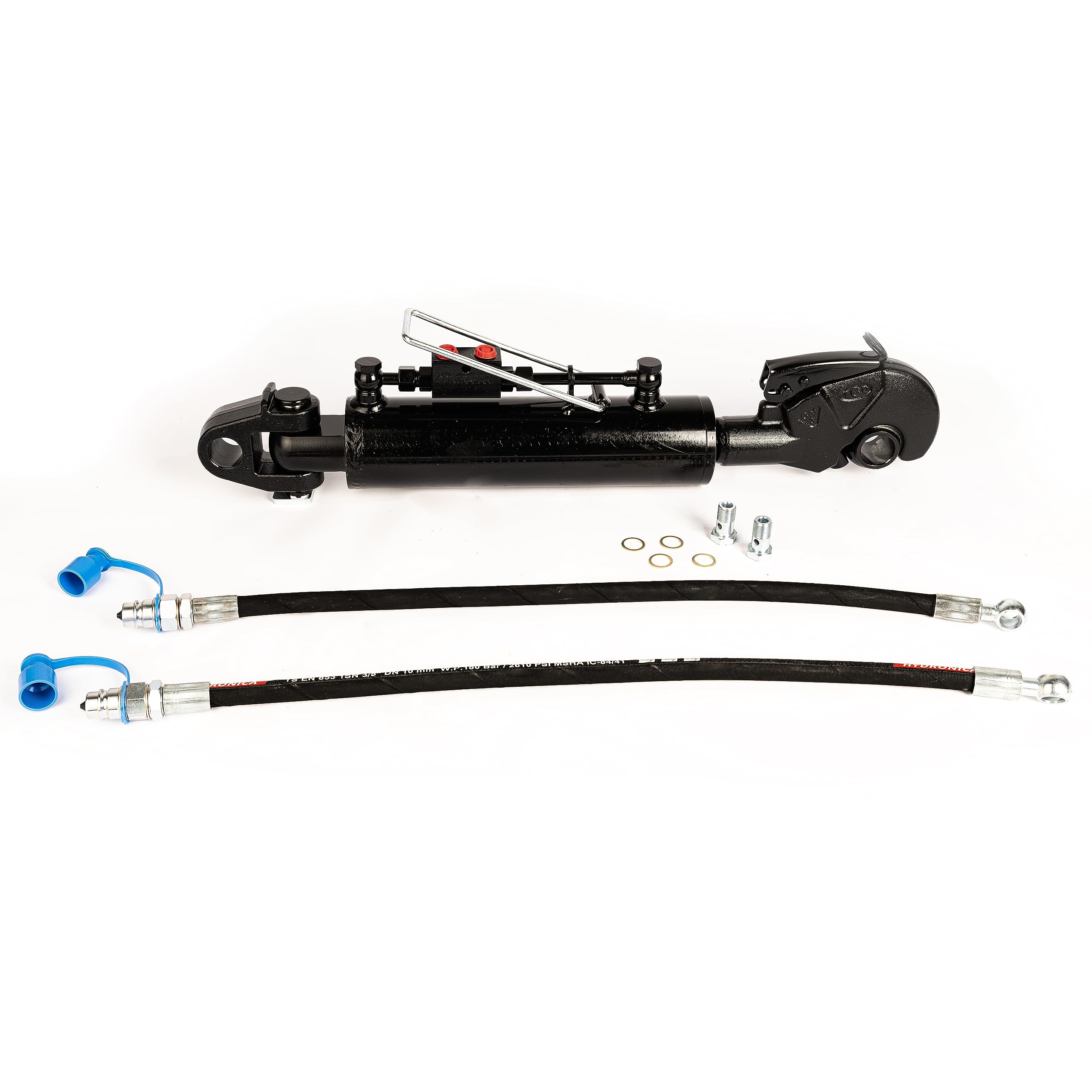

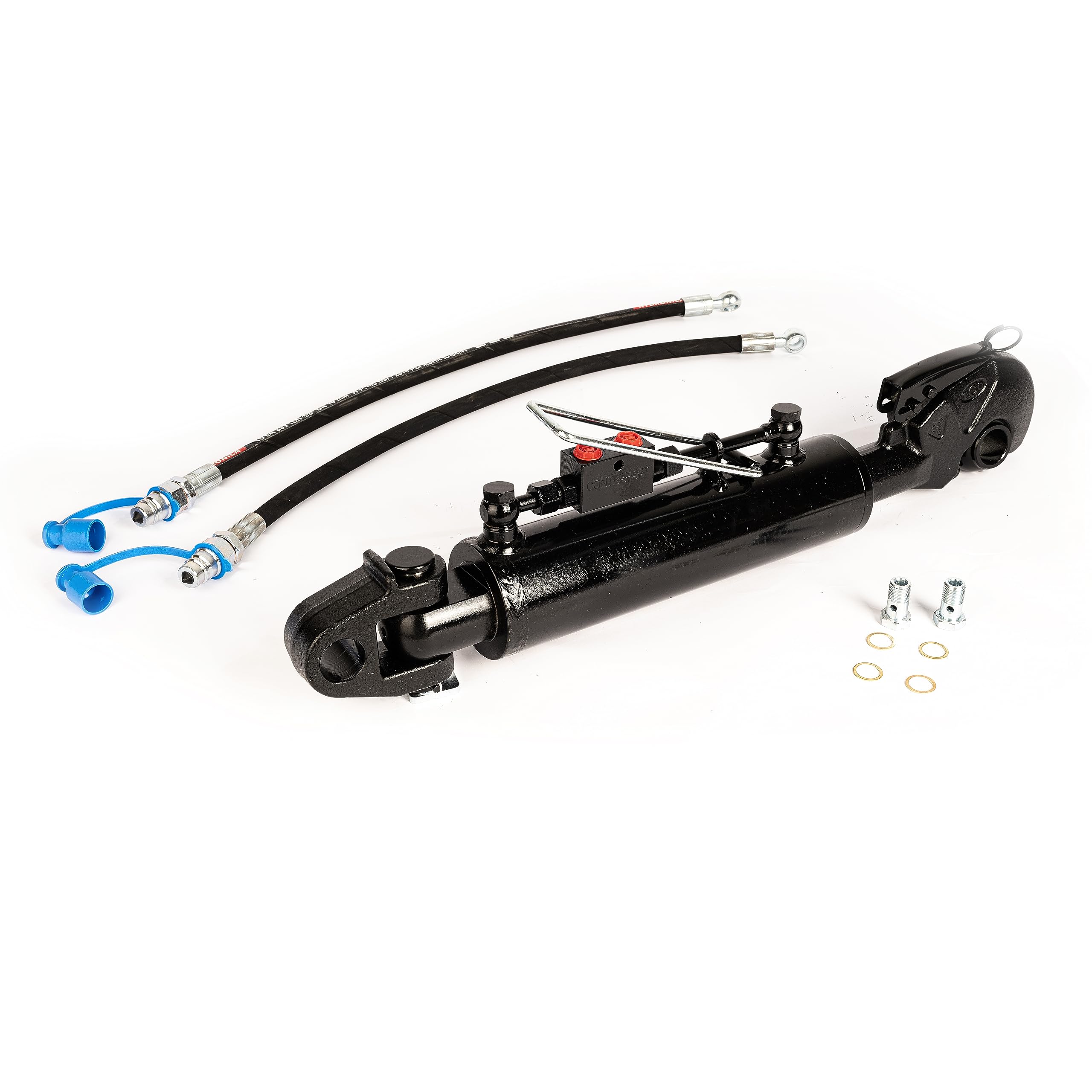

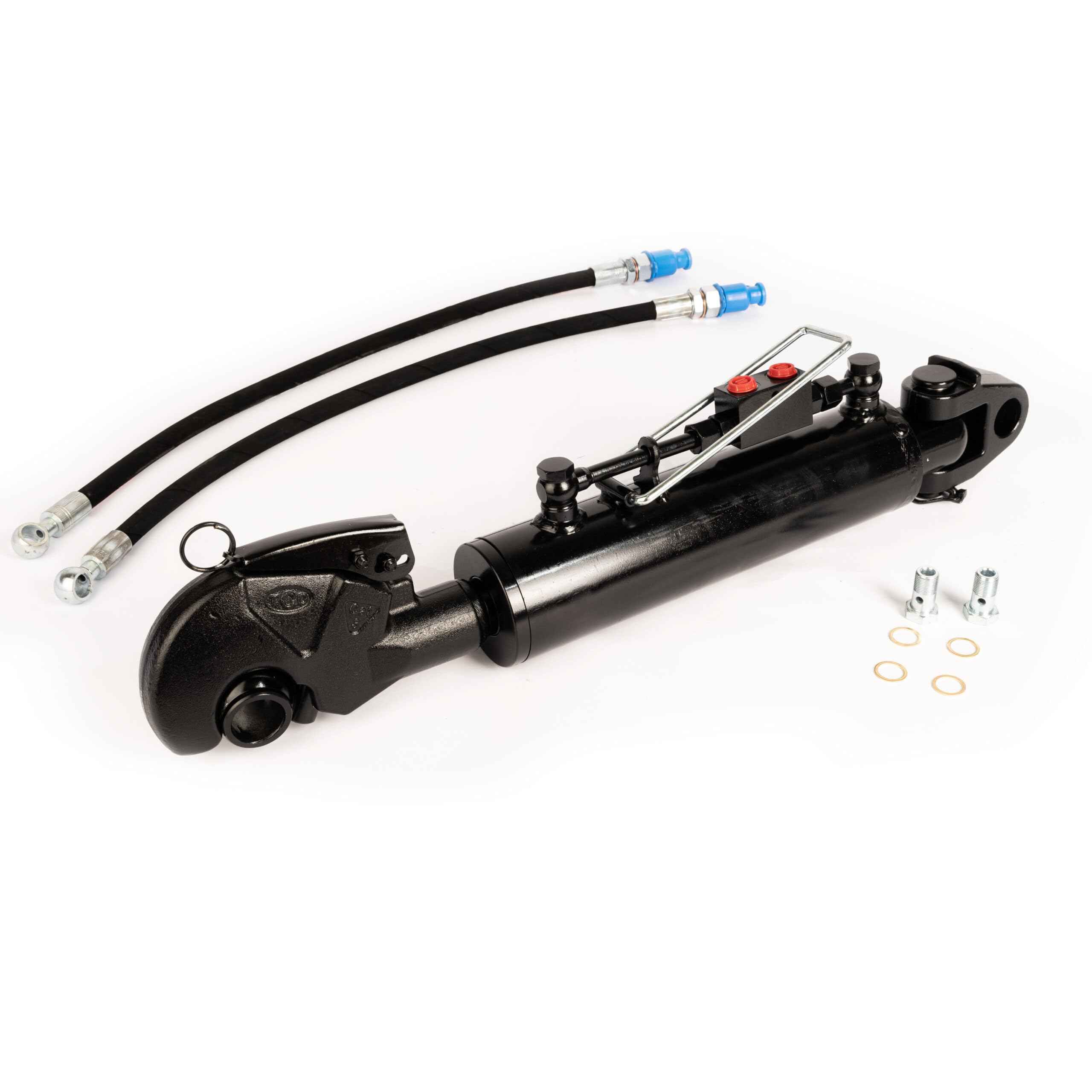

• Complete Set (See Picture)
• Hydraulic Top Link Cat. 3 – Heavy-duty hydraulic top link with Cat. 3 quick-release hook, Cat. 3 clevis end and Ø32.4 mm / 1 1/4" pin holes for tractor implement adjustment.
• Integrated Locking Block – Built-in locking block / check valve helps keep the implement securely in position and reduces unwanted movement or hydraulic drift under load.
• Quick-Release Hook & Clevis End – Practical Cat. 3 quick-release hook on one side and strong clevis end on the other side for secure 3-point linkage use.
• Strong 80/40 mm Cylinder – Equipped with a heavy-duty hydraulic cylinder delivering approx. 9.2 tonnes push force and 6.9 tonnes pull force, with Ø80 mm bore and Ø40 mm rod.
• Ready to Install – Supplied fully assembled with 2 hydraulic hoses (700 mm / 27.6"), including 1/2" quick couplings and dust caps for quick connection to the tractor hydraulic system.
• 635–845 mm (25"–33 1/4") – Stroke 210 mm
